LED Recessed Up/Down Light Kit 10 Pack

SKU: RDLKITOUT
(8 customer reviews)

Starting At: $319.22 USD

Use this recessed LED downlight kit to illuminate your outdoor space. This kit is perfect for adding soffit lighting under roofs, porch overhangs, decks, railings, and more. These recessed downlights have a flush mount with their housing and cast light straight down from the lamp. You can also use them as uplights. The kit comes complete with everything you need including 10 lights, LED transformer, photocell timer and waterproof dimmer. Upgrade to NexGen LEDs for extra brightness.

Clear

LED Recessed Down Lights for Both Indoors & Outdoors

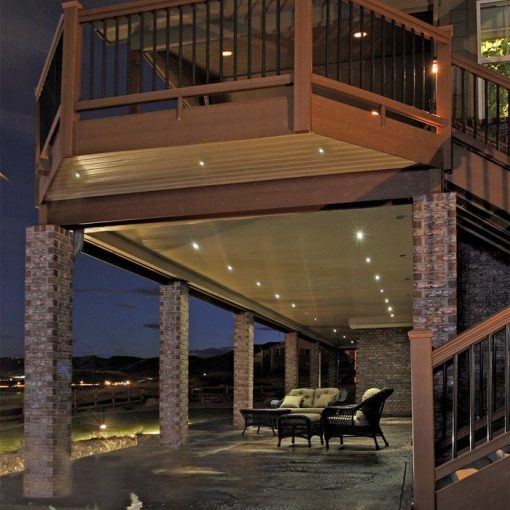

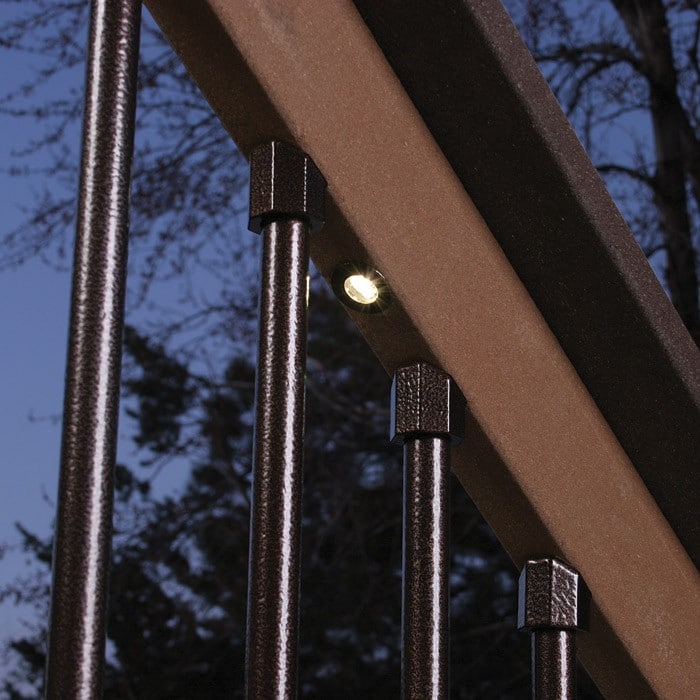

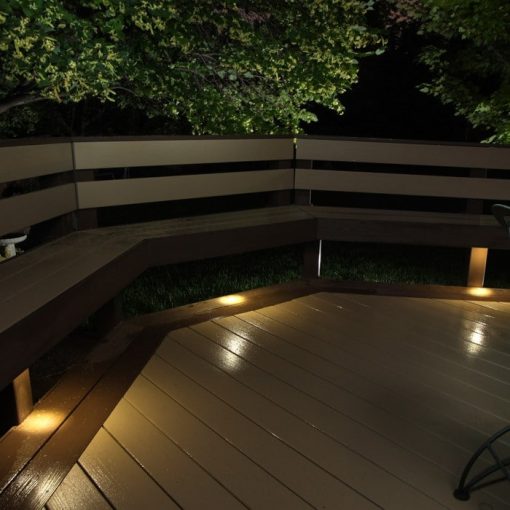

These low voltage lights are easy to install, virtually flush with the surface, and hardly visible. They can be installed almost anywhere for attractive down lighting, so long as they’re embedded in wood or composite materials. They can be installed outdoors in the ceiling of an overhang above a deck or patio, under a deck railing, or in a porch overhang. Inside, find creative uses for these lights as recessed cabinet lighting or closet lights. No matter where you choose to put these lights, the installation will be a breeze with our detailed instructions. Indoor and Outdoor Lighting
There aren’t many lights out there that can both withstand outdoor conditions and stay low profile enough to look good inside your home. Our LED recessed down lights make a great addition anywhere on your property. LED Green Technology
LEDs require up to 80% less energy than traditional light sources, so using our LED downlights will accrue energy and money savings over the lifetime of the product. Dimmable Warm White Light
Our downlights cast warm white light and share the same light spectrum as other DEKOR® lighting products (3200° K). Control the light intensity and create an atmosphere by using a DEKOR® WIFI controller with your project. Long-Lasting and Durable Lighting Options
The lights are waterproof, weatherproof, and salt air resistant. The housing is made of Alodine coated aircraft-grade aluminum. The housing has a powder-coated finish with built-in UV protection, making it long-lasting and durable. All our recessed lights are backed by an industry-leading 10-year / 30-year warranty.

Additional information

Weight 3.5 lbs
Dimensions 14 × 8 × 2 in
Certifications

ETL Listed, CE (Europe)

Color Temperature

3200K

Country of Origin

United States

Mounting Hole Diameter

0.90 in

Housing Flange Diameter

1.25 in

Light Output

20 Lumens

Light Output (NexGen)

72 Lumens

Power Draw

0.5 Watts

Power Draw (NexGen)

1.2 Watts

Voltage

12 volt DC

Waterproof

Yes

Wire Leads

6 in pigtail w/ female Plug-N-Play

8 reviews for LED Recessed Up/Down Light Kit 10 Pack

  1. John (verified owner)

    The lights are great and always work as advertised. I gave a 4 out of 5 because I think the kit should include a 10′ lead in order to be able to span the length of decks in between the 6 way connectors. The Dekor team has always helped me out in getting the needed parts but not without a return trip to pick it up.

  2. Joseph Davis (verified owner)

    Wonder soft lighting that I used as down-lighting from soffits above dark walkways at my home. Simple installation and secure connections may this easy!

  3. Joseph Z. (verified owner)

    Organized and easy to understand packaging with a quality product . Very happy with product

  4. Robert Claveau (verified owner)

    Great product!

  5. Louis Esposito (verified owner)

  6. Blair (verified owner)

    Tried the set out and it all works well. Deck is still being built so they have not been installed.

  7. Stephen C. (verified owner)

  8. Cheryl D. (verified owner)

    Exactly what we wanted for our home, just a little more light! Thanks for that.

Only logged in customers who have purchased this product may leave a review.

Each kit contains:

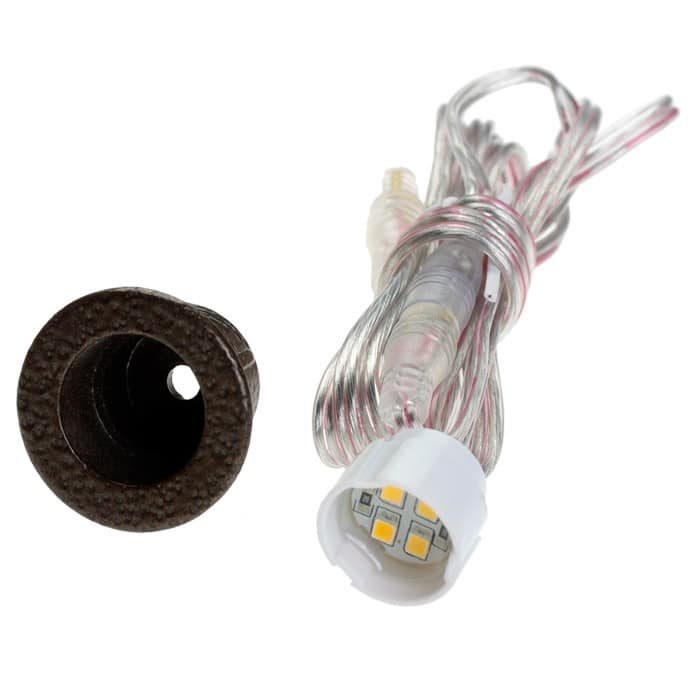

  • ( 10 ) LED Light Elements in UP/DOWN configuration with 5′ Plug-N-Play cables
  • ( 10 ) LED Housings in your choice of 7 different colors
  • ( 10 ) LED Snap on diffuser Disc Lens
  • ( 1 ) Custom Ground Forstner Bit
  • ( 1 ) EZ Outdoor Waterproof Power Driver (36 watt) with the capacity to light (30) standard LED Light Elements
  • ( 1 ) EZ Photocell Timer (dusk to dawn Timer) with variable timed off settings
  • ( 1 ) EZ Waterproof Low Voltage / LED Dimmer with Teachable Remote
  • ( 12 ) PLUG-N-PLAY 5’ Junction Cable
  • ( 3 ) 6-Port PLUG-N-PLAY splitters
  • ( 2 ) Packet of Dielectric Grease
  • ( 1 ) 20 ‘ Transformer to splitter connector
  • ( 10 ) Mounting Screws
  • ( 1 ) Installation Instructions

The power supply/transformer included with this kit supports up to thirty (30) standard LED recessed lights or twenty-four (24) NexGen lights. If you are ordering additional downlights with your kit, you can select an upgraded transformer when you purchase.

Our low voltage lights are powered by 12VDC. Please use this guide to select the correct DEKOR® power supply for the number of lights you plan on using.
Transformer Transformer Wattage Maximum # Lights Maximum # NexGen Lights
EZ 36 25 19
EZMAX 60 39 31
EZMAXC 100 64 52
EZMAX200 200 128 105
If you are adding these lights to an existing system, or are building a new system with multiple types of lights, please use our Transformer Calculator.

Installation

Download Plug-N-Play Deck Lighting Installation Instructions as a PDF.

Download Hard Wire Outdoor Recessed Light Installation Instructions as a PDF.

Warranty

10 Year Warranty when used with a DEKOR™ brand transformer.
No warranty when used with any other brand of transformer.

NexGen Down Lights for Soffits. I have a 1500 sq ft house, I installed 24 NexGen down lights in my aluminum soffits, one forstner bit required, they look great! I get many compliments. I had the soffit installer lay 14ga wire on the soffits as he worked, I came after he was finished, drilled holes, fish wire through hole w/coat hanger, made connections. Dimmer and transformer are installed in attic, the new wifi/app controlled dimmer w/scheduling is a welcome addition to Dekor products since I don’t use a photo cell. I no longer have spaces on the sides of my house that are in total darkness. The NexGen down lights function as enhancement lighting as well as security lighting.
Thanks!
Scott Spradley, Odessa, TX, May 4, 2016
I bought the recessed stair light kit & down lights all in dark copper vein. The lights really were the cherry on top of a gorgeous deck!! I love the product. My carpenter suggested it last minute when we did the project last spring. Really adds a great touch to the deck!!
Stacey E, February 28, 2013
My customers love your stair lights. I’ve just sold a deck with your down-lights recessed into all the upper rails. It’s going to look great.
Jeff – Bridgewater, NJ, July 20, 2011
WOW! I installed 24 lights in my aluminum soffits on my house shining downwards and only used 1 forstner bit. I have had nothing but compliments from all my JEALOUS neighbors plus the added security that it brings. I found your website from a Google search and I am more happy than a pig in mud,and furthermore would recommend these to anybody and everybody.
Steve S – Strongsville, OH, June 15, 2010
