Paver Dot™ Outdoor Step Light Kit 10 Pack

SKU: PAVERSKITxx

Starting At: $349.56 USD

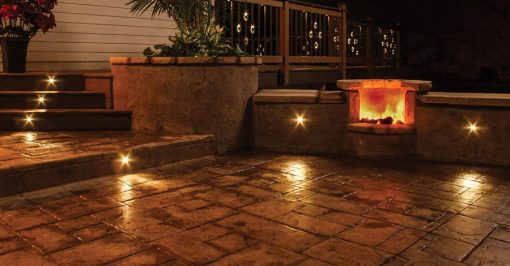

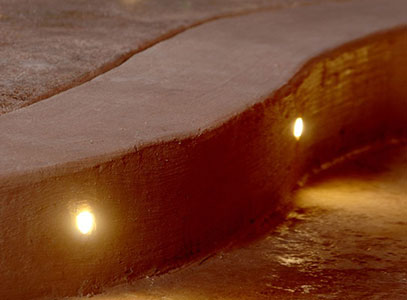

Paver Dots™ for steps and stairs cast light at a 30° angle and are designed to be embedded in stone, concrete and pavers. Our convenient Paver Dot™ kit includes 10 light elements, a waterproof LED transformer, a photocell timer, waterproof dimmer, and our standard 5ft or 10ft Plug-N-Play cables. New NexGen™ LED option available.
Clear

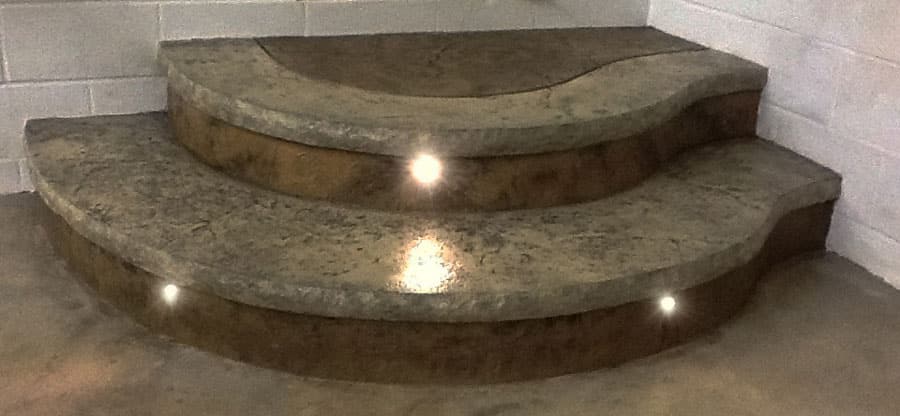

Cast light at a 30° angle. install flush with the surface, are completely sealed, weatherproof, and waterproof. able to withstand extreme weather: snow, rain, heat, cold, and salt air. perfect option for lighting your concrete steps. DIMMABLE. MADE IN THE USA

Additional information

Weight 4 lbs
Dimensions 1 × 1 × 1 in
Certifications

ETL Listed, CE (Europe), CTick (Australia)

Color Temperature

3200K

Country of Origin

United States

Diameter

1.25 in

Light Output

38 Lumens

Light Output (NexGen)

72 Lumens

Material

Polycarbonate

Power Draw

1.2 Watts

Power Draw (NexGen)

1.46 Watts

Voltage

12 volt DC

Waterproof

Yes

Wire Leads

6 in pigtail w/ female Plug-N-Play

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

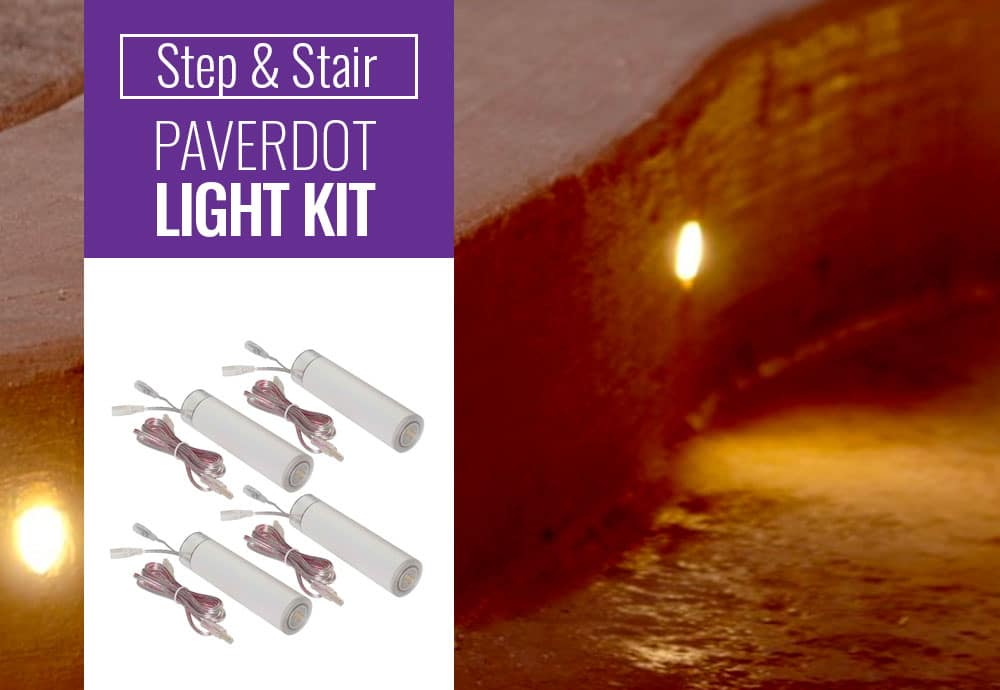

Step & Stair Paver Dot™ Light Kit Package Contents

Each kit contains:

( 9 ) 30° angle LED Paver Dot™ Light Elements with 2 connector ends
( 1 ) 30° angle LED Paver Dot™Light Elements with 3 connector ends
( 1 ) EZ Outdoor Waterproof Power Driver (36 watts)
( 1 ) EZ Photocell Timer (dusk to dawn Timer) with variable timed off settings
( 1 ) EZ Waterproof Low Voltage / LED Dimmer with Teachable Remote
( 1 ) Transformer to Splitter WP Connector 20’ length
( 9 ) PLUG-N-PLAY 5’ Cables
( 1 ) 20 ‘ Transformer to Splitter Connector
( 2 ) Packets of dielectric grease
( 1 ) Installation Instructions

9 of the light elements have 2 connectors for power in and power out to the next light. The last light has 3 connectors for power in, power out and connection to transformer out.

The power supply / transformer included with this kit supports up to THIRTY (30) standard LED Paver Dot™ lights or TWENTY (20) NexGen lights. If you are ordering additional Paver Dots™ with your kit, you can request to upgrade your transformer when you purchase online.

Our low voltage lights are powered by 12VDC. Please use this guide to select the correct DEKOR® power supply for the number of lights you plan on using.
Transformer Transformer Wattage Maximum # Lights Maximum # NexGen Lights
EZ 36 25 19
EZMAX 60 39 31
EZMAXC 100 64 52
EZMAX200 200 128 105
If you are adding these lights to an existing system, or are building a new system with multiple types of lights, please use our Transformer Calculator.

Download PAVER DOT Install Instructions as a PDF.

If you plan to space the lights every 24″ then you need the 5ft cables that come with this kit.

If you space the lights every 85″ then you need the 10ft cables.

10 Year Warranty when used with a DEKOR™ brand transformer.

No warranty when used with any other brand of transformer.
