Paver Dot™ Drill Stand Kit
$589.13 USD

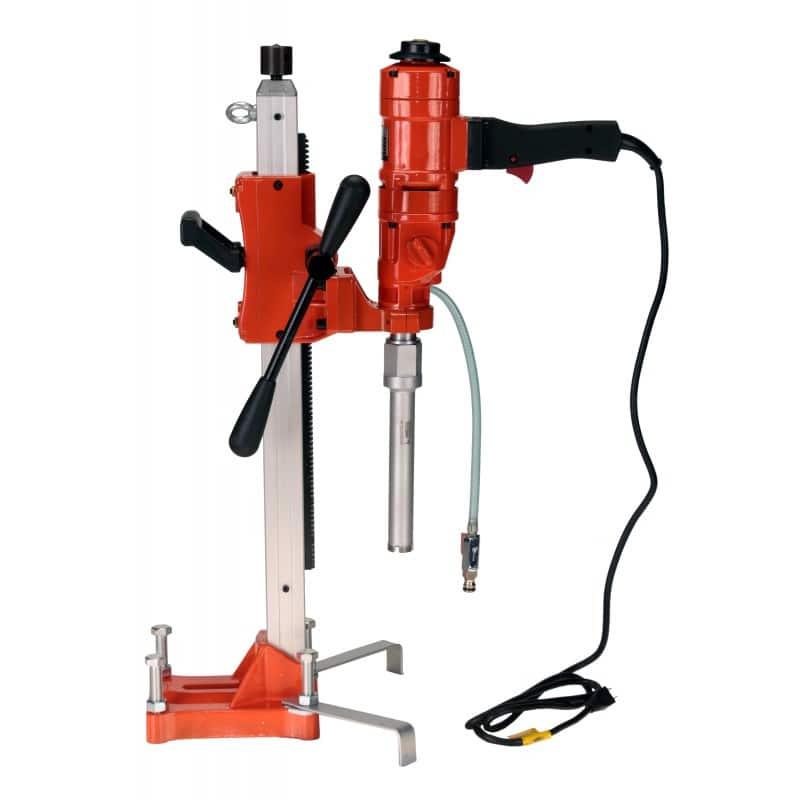

4” Core drill machine drilling rig can also be used by hand for drilling concrete, pavers or stone for installation of PAVER DOT™ LED Lights.
Paver Dot™ Drill Stand KIT for Paver Dot™ Installation
Perfect for coring pavers, block or stone to insert PAVER DOT™ LED Lights. Complete kit contains everything you need to core pavers, concrete, or flagstone so you can easily install PAVER DOT™ lights. Set up the drill stand and you’re ready to drill one paver after another. You’ll be guaranteed a precise straight hole every time.
Less wear and tear on you or your workers since the stand does all the work. No need to bend over and push the drill motor down on the paver or block, with the stand the handle does all the work.
Use with a stand or a handheld unit.

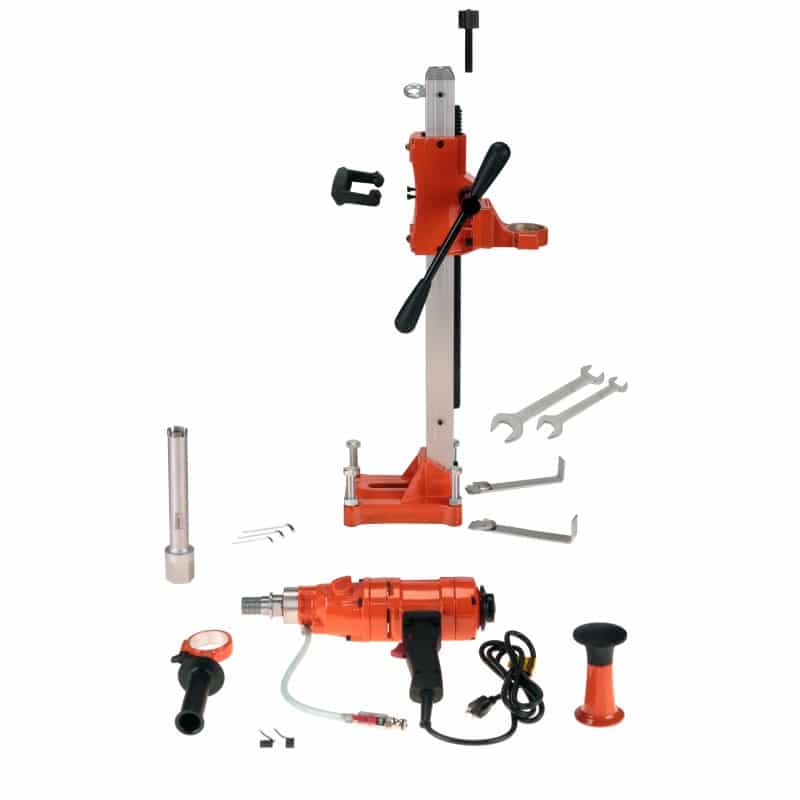

Kit includes 2-speed Drill Motor, stand, carriage, and PAVER DOT™ 1.26″ dia. core drill bit.
Features:

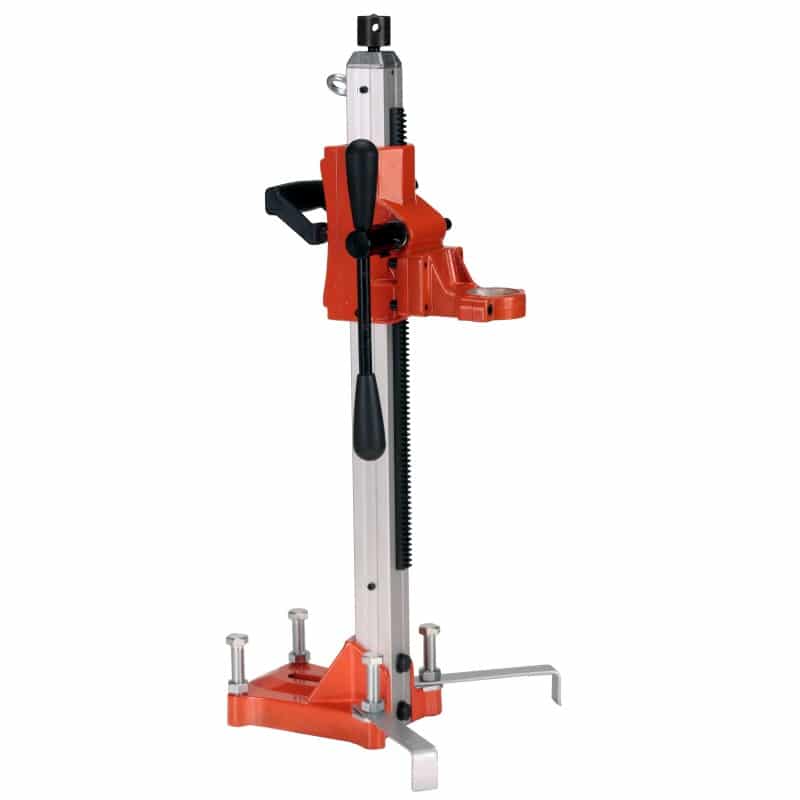

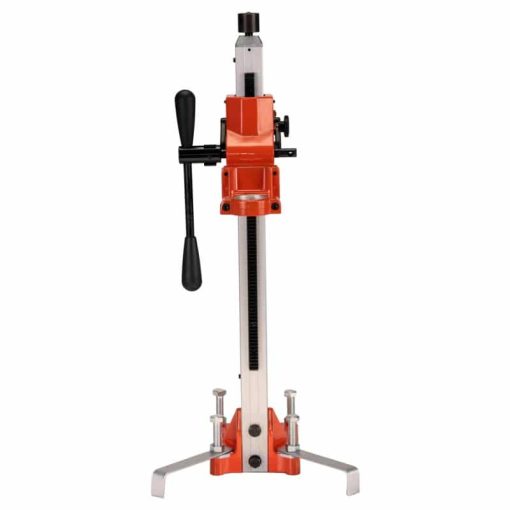

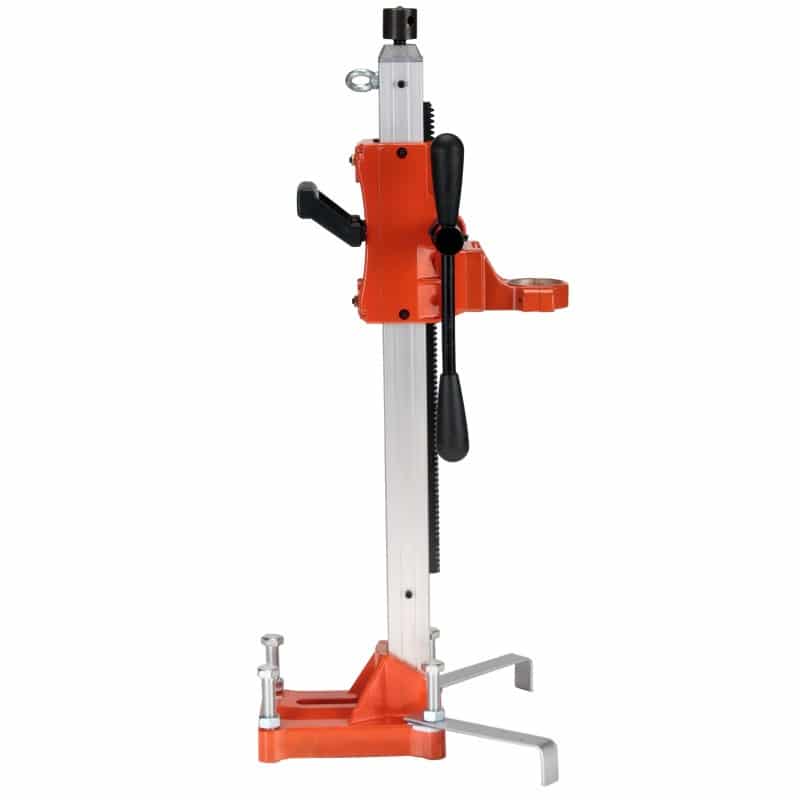

Aluminum Alloy Stand
Adjustable carriage rig
Removable drill motor for easy hand drilling
Two-gear rotary speed
Gear 1 (950 rpm) 2″-4″
Gear 2 (2100 rpm) 1″-2″
Safety clutch
Adjustable Quick Connect valve for “wet” drilling

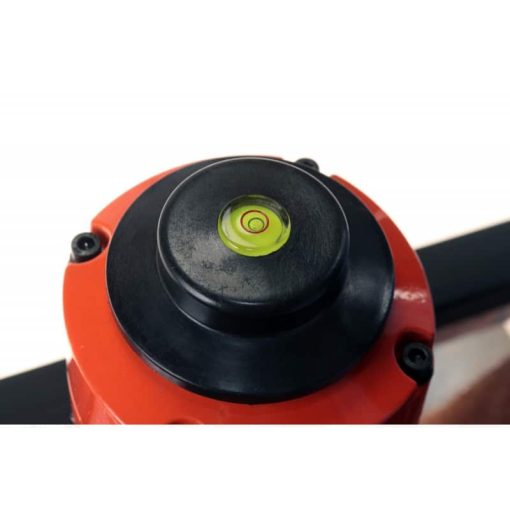

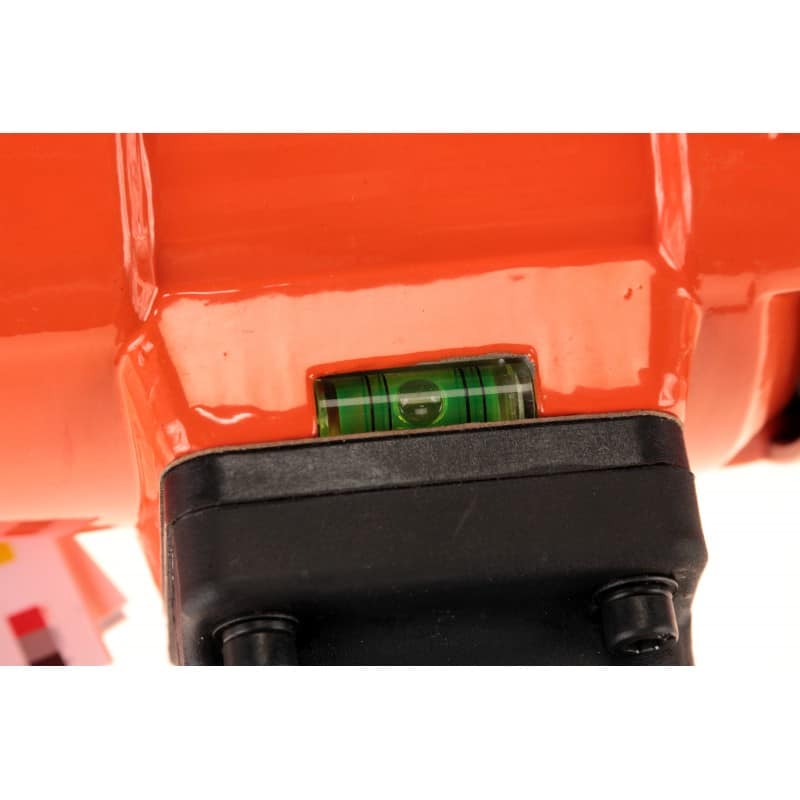

Level on a drill for precision drilling
Automatic hold down switch
Includes: 2 Wrenches, 3 hex wrenches, 2 spare brushes
| Voltage | 110V |
|---|---|
| Frequency | 50-60Hz |
| Motor Size | 1500W |
| Dual Speed | 2100rpm/950rpm |
| Arbor size | 1 1/4" 7UNC |
| Max Drilling Diameter | 3 5/32”/80mm (for concrete) – 7 7/8” /200mm (for brick) |
