Tree Gang Landscape Light with 3 Light Modules
$183.04
High output LED Landscape Tree Spotlight with 3 independent spotlight fixtures with CREE XLamp technology. The Tree Gang light can be configured to support up to 5 housings for the ultimate in versatility.
- Description
- Specifications
- Reviews (0)
- Featured Benefits
- Package Content
- Installation
- Warranty
- Videos

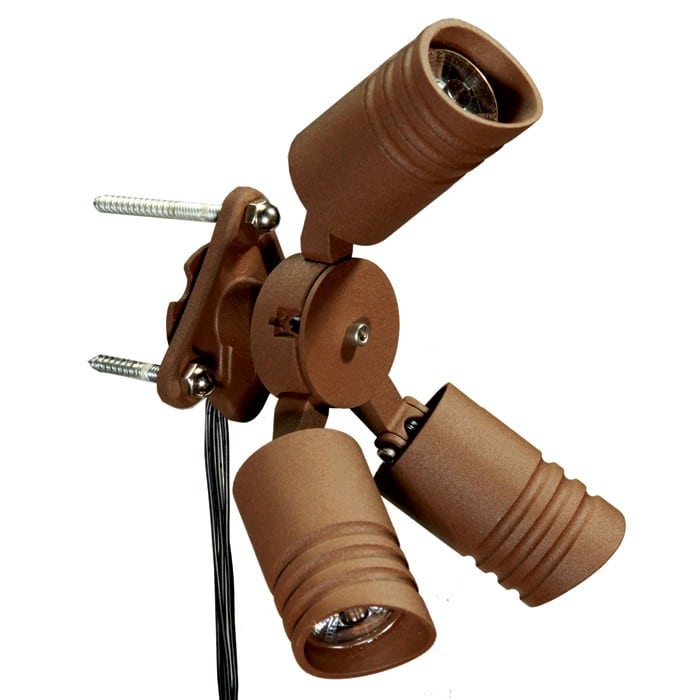

TreeGang Landscape Light with 3 Light Modules
Our LED Landscape Gang Spotlights are now available. We call it a “Gang” light as each light has more than 1 light fixture. In this case there are three (3) light modules. The Gang light can be configured to support up to 5 modules for the ulimate in versatility.
CREE XLamp Technology. We use CREE’s latest second generation XLAMP technology. With DEKOR and CREE’s branding partnership we have access to the latest LED technology from what we consider the “best in class” LED innovator. This LED is actually not a single LED but actually 82 individual leds.
Full Angular and Rotational Articulation Each light housing can articulate a full 130° about it’s pivot point and the housing itself will rotate 45° in both directions further allowing you to put the light where you want it.
Energy Efficient. The light is extremely efficient in power consumption as each light comes with a step-up transformer which increases the efficiency of the LED to the point it is drawing less than 670 milliamps of power. This allows you the ability to run multiple lights (6) from a single 5 amp DEKOR transformer.
Waterproof. The light is waterproof so rain or sprinkler systems are of no concern. Each light is subjected to a water test to make sure the light is impervious to water as well as an extensive bench testing to make sure the light performs to the highest standards.
Robust Construction. The Gang Spotlight is made from die cast aluminum components which are powder coated in our own facility and assembled using all stainless steel fasteners. We use a high output lens on the light which intensifies and focuses the light.
Plug-N-Play Connectors. uses DEKOR’s waterproof Plug-N-Play connector system for fast, simple installation.
| Colors | Hammered White #01, Antique Metal Black #05, Oil Rubbed Bronze #07, Brown Speckle #08, Dark Copper Vein #10, Gloss Black #14, Black Gold #25 |
|---|---|
| DEKOR™ Collection | Millennium Outdoor |
| IP Rating | 65 |
| Life Expectancy | > 20,000hrs |
| Light Color Temperature | 3200 ° K |
| Light Output | 500 Lumens per light module |
| Manufacturer | Made in the USA |
| Waterproof | Yes |
Reviews
There are no reviews yet.
- Waterproof (IP 65 rating)
- Warm White Light
- Full Angular and Rotational Articulation
- 90° Head Rotation
- 130° Head Tilting
- High Output 500 Lumens
- One of the Smallest Spotlights on the Market
- Runs virtually at ambient temperature
- Minimal Installation
- Robust Construction
- Rugged, long lasting and durable, backed by our 5 year/ 30 year warranty
- Made in USA
Landscape Light Package Contents
- High Output Spot Light Assembly
- 36VDC Step-Up Transformer (1 per light)
- (1) Hex Allen Key (5/32”)
- ( 1 ) Female to Female Connector
Installation
Download Plug-N-Play Landscape Lighting Installation Instructions as a PDF.
Installation Notes
- Each DEKOR Spotlight requires use of a dedicated 36V Step-Up Transformer (included)
- If using more than one Spotlight, use 5-way splitter (sold separately) from the output of the 5-amp transformer to each 36V step-up transformer
- Spotlights must use a dedicated line running directly from the included 36V Step-Up transformer. Maximum of seven spotlights are allowed per one 5-amp transformer (NOTE: Must use two 5-way splitters if installing six or seven spotlights to single 5-amp transformer as 5-way splitter is designed for up to five spotlights.) Spotlights have a male lead and require the use of a female-to-female adapter (sold separately) to connect spotlight to connector wire. Determine the distance from the spotlight to the step-up transformer. Select the appropriate male-to-male connector cable (Make sure to account for slack to bury the cable )(Cables sold separately in lengths of 5ft, 10ft, 20ft, 40ft & 60ft)
- Do not mix any other lights on the spotlight circuit. Applying 36V to any other fixture types will result in very short diode life and will void the warranty
Installation Steps
- Locate placement of spotlights and lead wiring.
- When adding male-to-male connector cable for extension use a female-to-female adapter. Connect male lead from Spotlight to one end of the female-to-female adapter. Add male lead from extension to the other end of the female-to-female adapter.
- Run all wire on the surface back to the location of the 36V Step-Up transformer(s).
- Connect opposite end of the male-to-male extension to the female end of the 36V Step-Up transformer. Wire the 36V Step-Up transformer or 5-way splitter to the 5-amp transformer.
- Test lights to ensure all power supply, connections and light fixtures all work properly and placement is appropriate.
- Ensure all unused connections on 5-way splitter are covered using weather resistant silicone.
Warranty
5 Year / 30 Year Warranty when used with a DEKOR™ brand transformer.
No warranty when used with any other brand of transformer.
Warranty
5 Year / 30 Year Warranty when used with a DEKOR™ brand transformer.
No warranty when used with any other brand of transformer.
